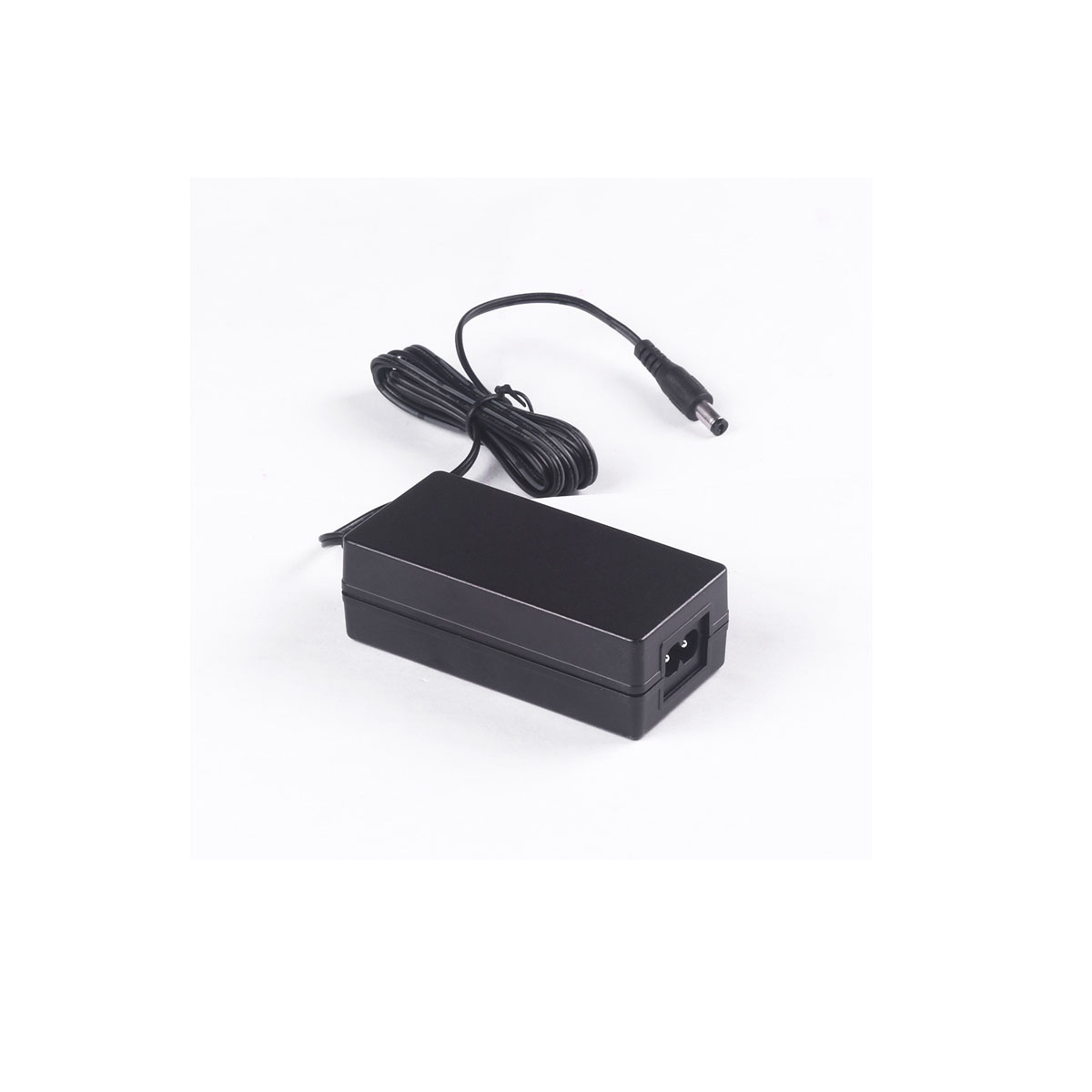

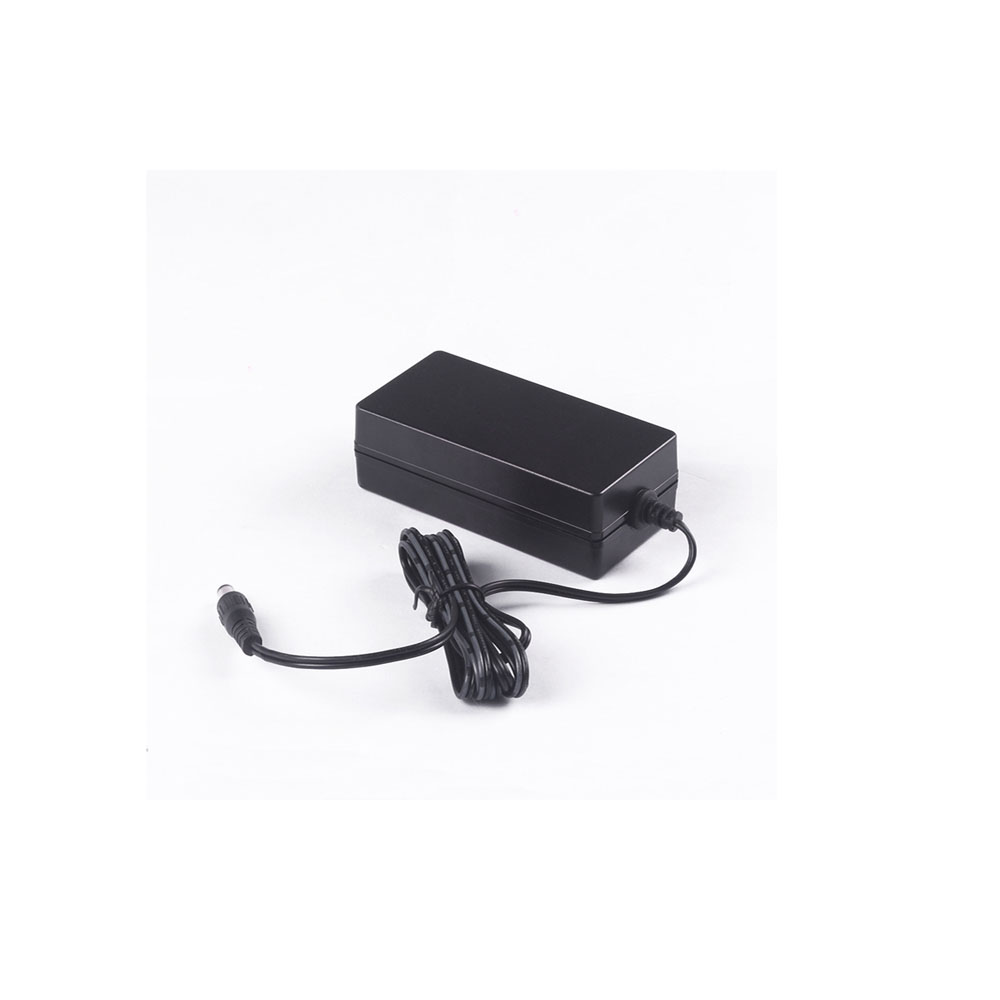

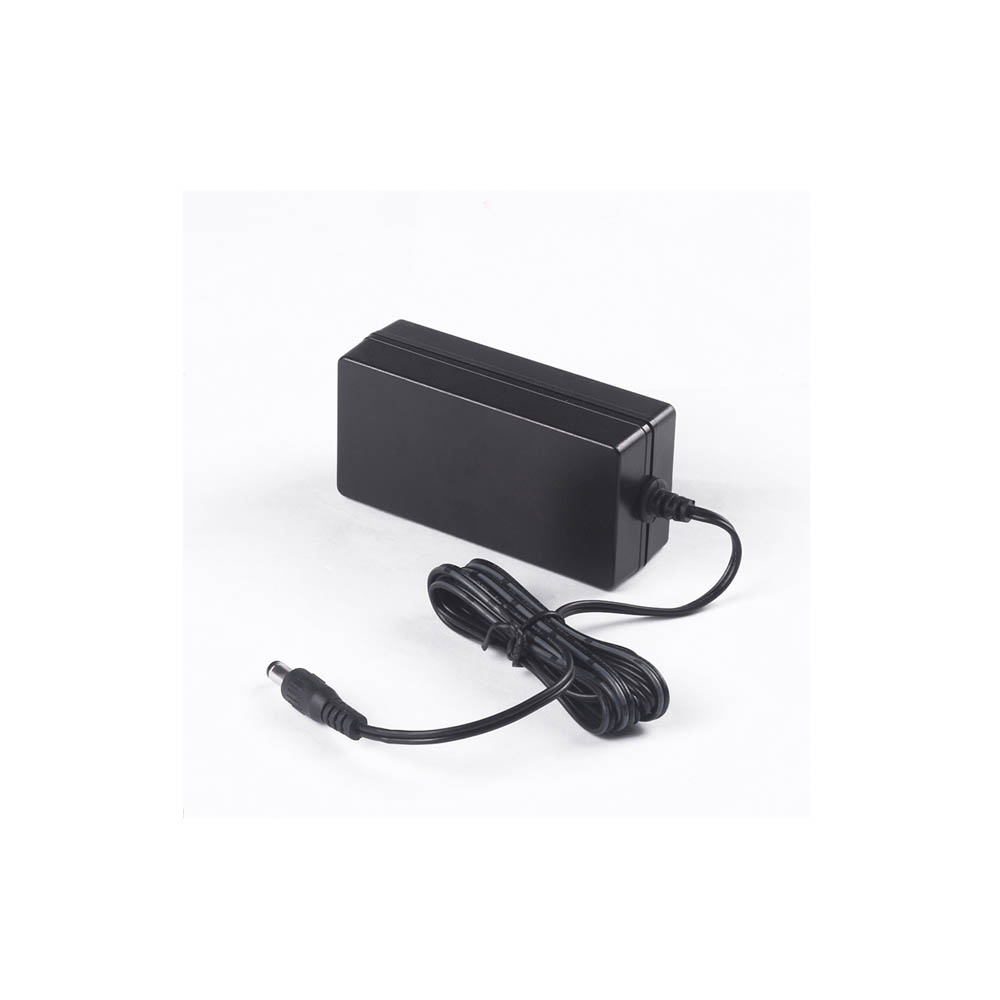

Desktop 12W Series

C6/C8/C14 Socket


Don't wait, Text us for instant quotes and samples!


Datasheets:


12W Desktop Power Adapter.pdf

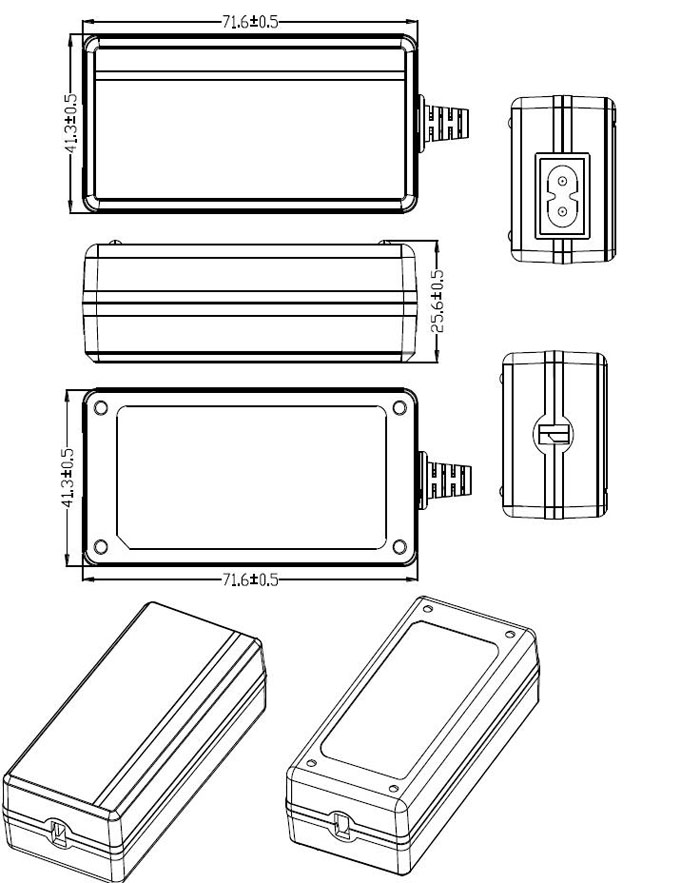

External Dimensions (Unit: mm)


12W desktop dimension.jpg




Advantages Description:

Xinspower is committed to building benchmarks for safety products. All series of products have obtained UL, FCC, CB, GS, CE, SAA, C-Tick, PSE, BSCI, KC, CCC, and have applied to meet safety regulations in different industries.

Standards: standards cover, IT class / IEC62368, home appliances / IEC61558, battery charging class / IEC60335, LED class 61347; Neosport products enjoy good performance in home appliances (including personal care, home electronics, etc.), audio and video industry, security (DVR, IPCamera), information, and other products, battery industry, LED products and other applications industries and global consumer electronics reputation, providing global customers with quality power-related products over 16 years of experience.

Technical Specifications
Iutput 100~240V, 50Hz/60Hz
Output 5V5A、9V3.5A、9V4A、12V2.5A、12V3A、15V2A、15V2.4A、19V1.89A、20V1.8A、24V1.5A、30V1.2A、36V1A
Size 100×46×32.5mm
Interface IEC320-C6、C8、C14
DC Connector 5.5*2.1/5.5*2.5/XRL etc
Certification UL、FCC、CB、CE、GS、PSE、KC、KCC、SAA、RCM、CCC
Safety Standard IEC62368、IEC61558
Protection Short Circuit Protection, OVP, OTP, OLP, OCP
×
