Detachable 36W Series

EU/AU/US/UK/JP/KR/CN/IN/BR/AR Plugs


Don't wait, Text us for instant quotes and samples!


Datasheets:


36W Detachable Power Adapter.pdf

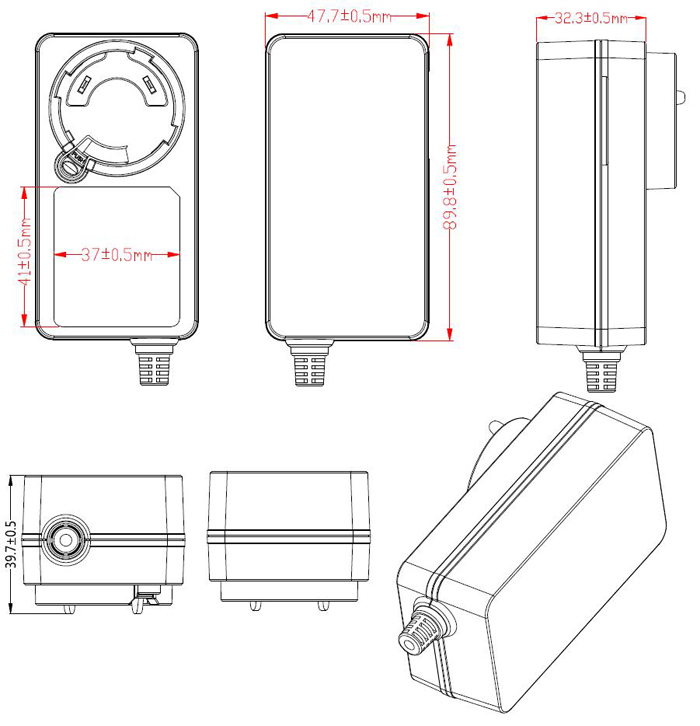

External Dimensions (Unit: mm)


36W detachable power adapters.jpg


Removable plugs.jpg

Advantages Description:

Xinspower A361 36w series interchangeable plugs power adapter with a max 36w output power. The interchangeable plugs allow you to use the same power adapter in multiple countries or regions without the need for additional adapters. This can be especially useful for travelers or people who frequently move between countries. Xinspower interchangeable plugs DC power adapters are designed to meet international safety standards IEC62368 and IEC61558. We applied UL、FCC、CB、CE、GS、PSE、KC、KCC、SAA、RCM、CCC etc certifications for this model.



Features

  • Up to 36W MaxPower.
  • Level VI efficiency.
  • No load power consumption <0.1W.
  • Universal input voltage range 100-240vac 50/60Hz.
  • Over voltage, over current, and short circuit protections.
  • UL、FCC、CB、CE、GS、PSE、KC、KCC、SAA、RCM、CCC safety approvals.
  • Interchangeable plug design: US EU AU UK plus changeable
  • DC cable length and DC connector support customized.
Technical Specifications
Iutput 100~240V, 50Hz/60Hz
Output 5V5A、9V3.5A、9V4A、12V2.5A、12V3A、15V2A、15V2.4A、19V1.89A、20V1.8A、24V1.5A、30V1.2A、36V1A
Size 100&times;46&times;32.5mm
Interchangeable plugs CN, US, EU, UK, AU, JP, KR(Interchangeable)
Certification UL、FCC、CB、CE、GS、PSE、KC、KCC、SAA、RCM、CCC
Safety Standard IEC62368、IEC61558
Protection Short Circuit Protection, OVP, OTP, OLP, OCP
×
